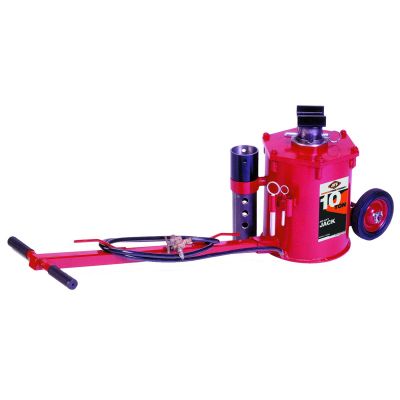

American Forge & Foundry AFF - Air Lift Jack - 10 Ton Capacity

Features and Benefits:

• Color: Red/Black
• Capacity: 10 Ton
• Product Type: Air Lift Jack
• Power Type: Air
• Operation: Air Valve
• Minimum Height: 17.3"
• Maximum Height: 51.2"
• Chassis Length (in.): 12.75"
• Chassis Width: 12.75"
• Reach (in.): N/A
• Lift: 12.4"
• Saddle Diameter: 5" x 4"
• Saddle Spread (in.): N/A, Fixed
• Handle Length (in.): 38.5"
• Working Air Pressure: 200 PSI
• Weight: 172 Lbs.
• Wheels: Qty 2 - 8" Rubber Wheels
• Certification: ASME/PASE 2019
• Warranty: 1 Year
• Adapters Included: Qty 2 - Extensions, Saddle
• Special Features: 3 Way Air Valve| Automatic Safety Lock
• This Air Lift Jack is designed for lifting and supporting trailers, large trucks, buses, farm, industrial, and construction equipment.
• 10-ton capacity achieved at 200-PSI air supply.
• Low height 18" to high height with all extensions used 52".
• Heavy-duty air valve offers accurate lift control.
• Removable "T" handle for easy storage.
• Extension tubes offer multiple lifting and locking positions.
• 12" Lift travel.
• Large diameter rubber tread wheels.


American Forge & Foundry features a wide range of specialty jacks for the trucking, agriculture, fleet, and military sectors. Each is designed for applications where extra capacity, added reach, or height may be required.
