American Forge & Foundry AFF - Collision & Body Repair Kit - 10 Ton Capacity - 17 pc Kit - With 2 Speed Quick Pump - Includes Pressure Guage - SUPER DUTY

Features and Benefits:

• Color: Red/Black
• Product Type: Body Repair Kit
• Ram Capacity (Tons): 10
• Ram Stroke (Inch): 5.25
• Ram Effective Area (Square Inch): 2.46
• Ram Oil Capacity (ml): 207
• Ram Collapsed Height (Closed) Inch: 12.68
• Ram Extended Height (Inch): 17.8
• Ram Outside Diameter of the Unit (Inch): 2.16
• Ram Diameter (Inch): 1.57
• Ram Saddle Diameter (Inch): 1.3
• Ram Optimal Pressure: 8,937 PSI
• Ram Weight (Lbs.): 9.81
• Hydraulic Spreader Capacity: � Ton
• Hydraulic Spreader Length: 9.52”
• Hydraulic Spreader Width: 2.28”
• Hydraulic Spreader Stroke: 3.62”
• Hydraulic Spreader Weight: 3.75 Lbs.
• Hand Pump Rated Pressure (PSI): 8,937
• Hand Pump Output per Stroke (Ram Cylinder Extended Length Per Stroke) (Inch): 0.381
• Hand Pump Oil Capacity (ml): 650
• Hand Pump Optimal Force (Lbs.): 148.88-148.37
• Hand Pump Piston Stroke (Inch): 0.98
• Hand Pump Oil Output Thread: �” NPTF
• Hand Pump Weight (Lbs.): 14.11
• Kit Extension Lengths: 4”, 10”, 18”, 27”
• Hose: �”, 5�, Double Braided
• ASME / PASE 2019 Safety Standards
• Warranty: 1 Year
• Contains all the tools necessary for pushing, spreading, and pressing of vehicle body panels, parts, frames, and assemblies. Snap-lock design for quick and easy assembly.
• Auto air bleed pump eliminates the need to bleed system prior to use.
• Automatic pump overload system protects against damage to rams and equipment.
• Heavy walled extensions stand up to the toughest of working applications that are interchangeable with other body and frame kits.
• Chrome plated pump core and piston rod for increased durability and long life.
• Long handle provides a very low pumping effort.
• Double braided hydraulic hose provides protection against abrasion and heavy wear.
• 1/2-ton capacity hydraulic spreader features 2" jaws and spreads from 5/8" to 3-3/4".
• Includes blow molded case for easy transport and storage.
• Meets ASME PASE 2019 standards.

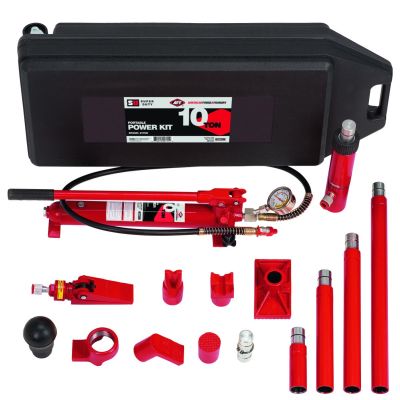

• Kit Includes: Hand Pump, Ram, � Ton Hydraulic Spreader, Plastic Blow Mold Case, 4” Extension Tube, 10” Extension Tube, 18” Extension Tube, 27” Extension Tube, Ram Toe, Flat Saddle, Wedge Head, V Base, Male Connector, Rubber Saddle, Base, Ram and Hose Coupler Set, Pressure Gauge.


Offering a wide assortment of Hydraulic Rams for use in high force applications including lifting, pulling, pushing, bending and alignment. Choose from complete kits or individual styles.
