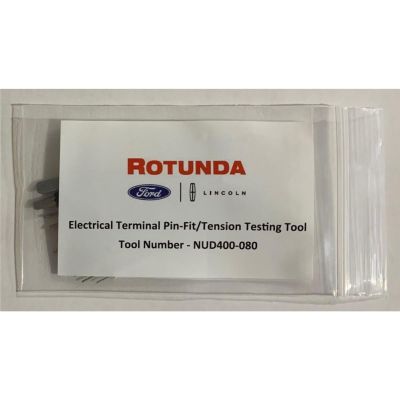

NUDI Terminal Pin-Fit/Tension Testing Tool

Features and Benefits:

• Recommended by Ford for terminal pin-fit testing
• Designed specifically to check pin-fit/tension of female electrical terminals
• Contains 11 terminal sizes, each color coded for simple identification
• Solid wire post to ensure consistent feel when inserted into female terminals

This tool is used to check for proper pin-fit and tension on Ford/Lincoln electrical terminals found in most vehicles built within the last 10 years.

The tool contains the following terminals:

• 0.5mm square
• 0.64mm square
• 1.0mm x 0.64mm
• 1.2mm x 0.64mm
• 1.8mm x 0.64mm
• 1.0mm round
• 1.5mm round
• 1.5mm x 0.8mm
• 2.8mm x 0.8mm
• 4.8mm x 0.8mm
• 6.3mm x 0.8mm

Recommended tool to properly diagnose electrical and electronic concerns.
