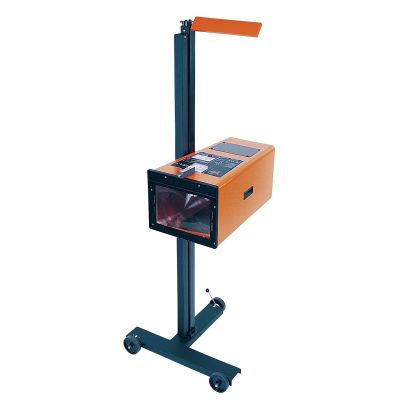

Symtech HBA 5 - Electronic Headlamp Alignment System with Line Laser Alignment

Features and Benefits:

• Digital Laser Alignment System: Ensures pinpoint accuracy and consistent beam measurement for reliable, repeatable headlamp alignment.
• Laser Floor Slope Assessment: Compensates for uneven shop floors to maintain alignment precision across multiple bays.
• Follow the “Arrows” Guidance System: Red arrows indicate adjustment direction, and a green light signals perfect alignment for foolproof operation.
• Approved for Inspection Programs: Certified for regulated inspection use in both the United States and Canada, ensuring full compliance.
• Portable, Multi-Bay Capability: Lightweight design allows easy movement between service bays for versatile use.
• Rechargeable, Replaceable Battery Pack: Provides flexibility and long-lasting power without reliance on cords or outlets.
• 10-Foot Floor Track Included: Comes with two 5-foot sections for stable positioning and repeatable alignment accuracy.
• Rugged, Durable Construction: Built to withstand demanding shop environments while maintaining calibration integrity.
• User-Friendly Interface: Simple controls and a bright digital display allow quick operation and real-time feedback.
• Meets OEM, SAE, and DOT Standards: Guarantees compliance with industry requirements for safe and accurate headlamp aiming.



The HBA-5 Electronic Headlamp Alignment Unit provides cutting-edge accuracy for automotive professionals performing headlamp aiming and inspection. Engineered for precision and reliability, it integrates advanced electronic sensors with a laser-guided floor slope assessment to deliver consistent, repeatable results. The systems intuitive LED “arrow” guidance directs technicians to make perfect alignments red arrows indicate necessary adjustments, while a green light confirms a flawless setup. Approved for regulated inspection programs across the United States and Canada, the HBA-5 supports portable, multi-bay usage and includes a rechargeable, replaceable battery pack for maximum mobility. Designed to meet OEM, SAE, and DOT standards, it ensures compliance, improves safety, and enhances service efficiency in any automotive workshop.
